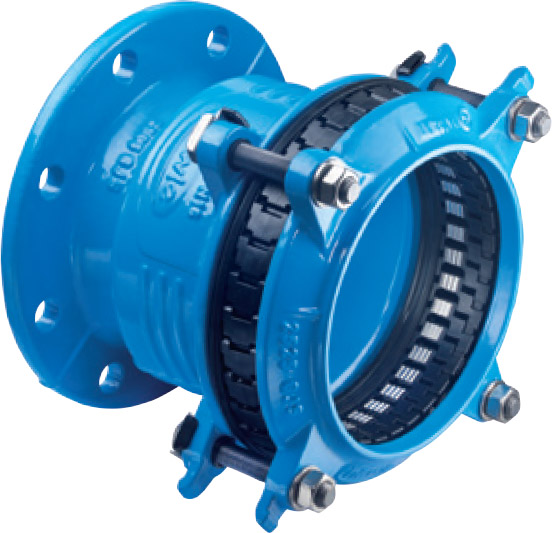

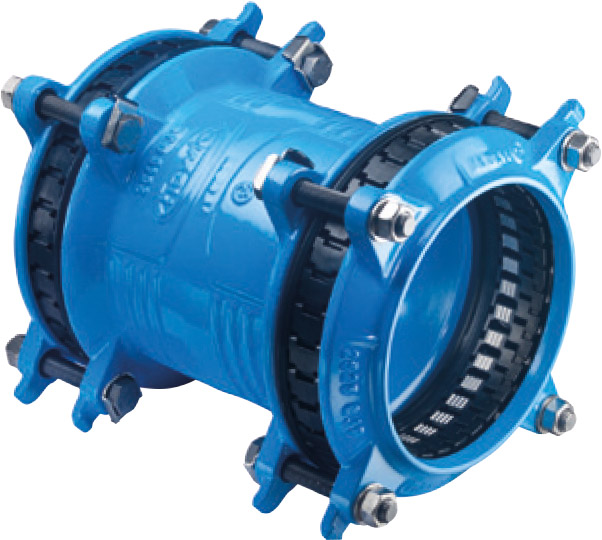

SYNOflex is a highly versatile “all-in-one” socket coupling used to establish restrained connections between a variety of pipe materials, dimensions & pressures. Because SYNOflex can be universally fitted between AC, DCI, PE, PVC & Steel pipelines, the system offers dramatic time and budget savings when contrasted with dedicated coupling systems.
The SYNOflex epoxy powder coated body is specified by GSK (the Quality Association for the Heavy Duty Corrosion Protection of Powder Coated Valves and Fittings) and provides exceptional corrosion protection for superior longevity. Bolts, nuts, washers and locking pistons are all made from A4 high-grade stainless steel.

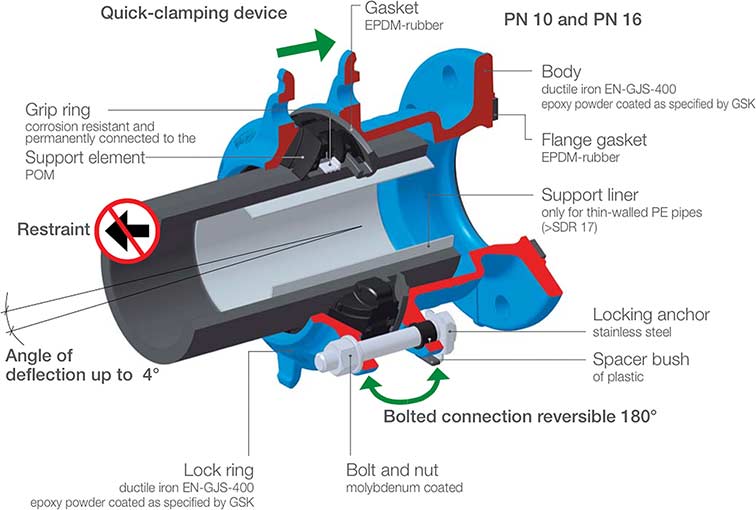

The SYNOflex quick-clamp lug was adapted to the system to ensure a quick and easy pairing between the grip ring and the pipe. The SYNOflex bolt anchor creates effortless nut tightening that can even be done by hand while the Molybdenum coated bolts counteract friction with the nut for easy smooth assembly.
SYNOflex is backed with a 10-year factory warranty, a reflection of our confidence in the range and our commitment to customer satisfaction.
Flexibility & versatility are the key fundamentals behind the SYNOflex design. The 4-degree angular deflection tolerance at either end of the coupling means easy adaption to services that may have lost shape or occur close to a slight bend. The Molybdenum coated bolts can be inserted on the inner OR outer side of the seal-clamp making for hassle free installation in tight working spaces.

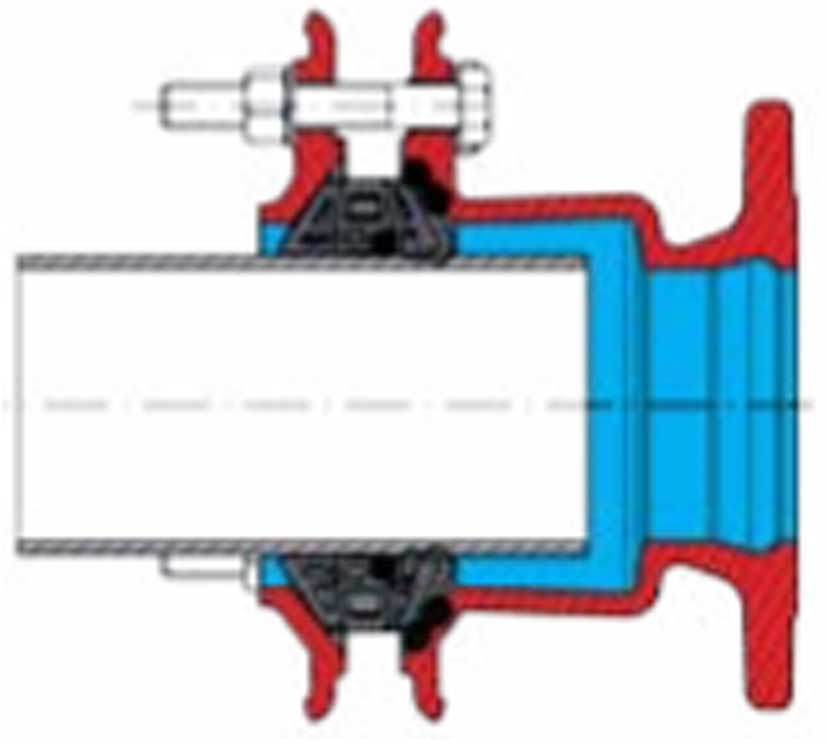

SYNOflex guarantees secure, long lasting pipe restraint without damage to pre-existing services. The elastomer gasket fits snugly around the pipes surface to create a highly effective seal and eliminate slippage during installation.

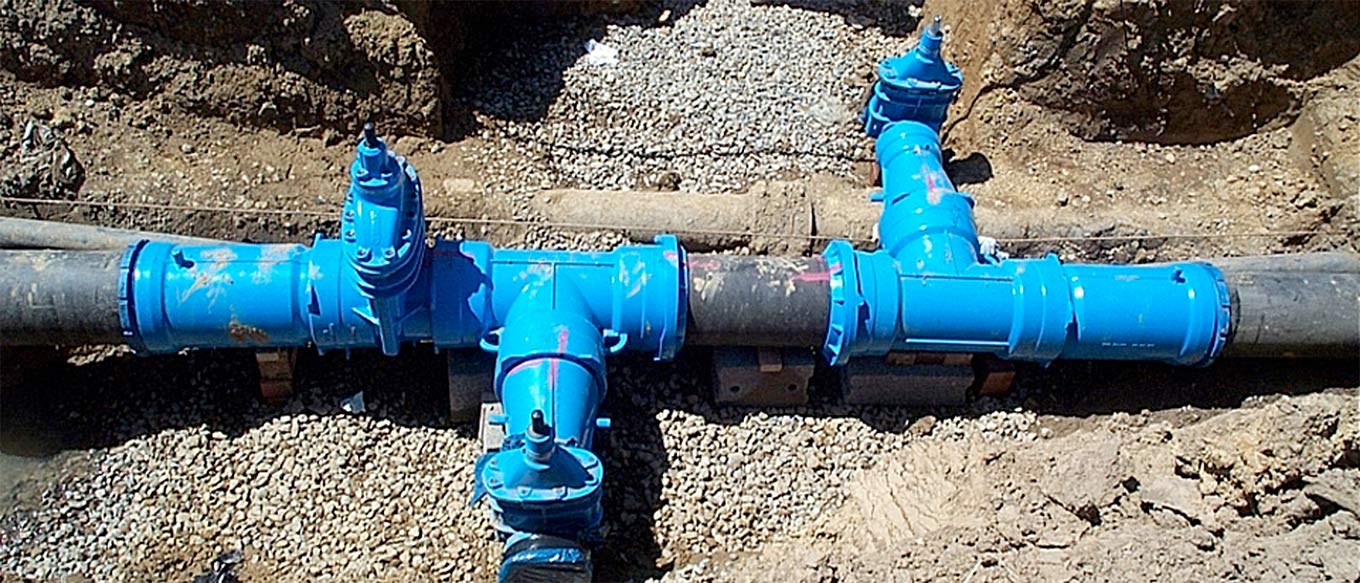

SYNOflex covers a multitude of applications, materials and site conditions saving financial outlay typically designated to various application-specific coupling systems.
Steel
DCI
PE/PVC
AC*
